[PConline Review] TCL released its main V8200 series of super-smart Internet TV products this year. It has a number of innovations such as Windows/Android operating system, TV application store, voice and cloud computing functions, smart gesture and gesture recognition and control, etc. Human-computer interaction technology and applications. The L55V8200 in this series has come to PConline evaluation room. Let's take a look at how this super smart Internet TV performs.
First, TCL L55V8200 first evaluation after the test
TCL V8200 series is the most prominent is its latest research and development of super-intelligent features, the current V8200 series 55,46 inch equipped with the Windows7 system, while the 40 inch is equipped with the Android operating system, but in the future should be able to upgrade through the operation of the dual system . Thanks to the mainstream smart operating system, the V8200 series boasts more functional expansion capabilities than typical smart TV products. In addition TCL V8200 also has 120Hz frequency processing technology, LED backlight and other mainstream features, I believe that it will have a good performance in picture quality.
TCL L55V8200 3D Picture Series Evaluation Forum Quote
Compared to TCL's flagship X11 series last year, the V8200 does not have a great advantage in hardware configuration. It can be seen that the focus of this year's TCL is the function of the Super Internet Smart TV.
Internet TV function
Super Intelligent Internet Function mitv Internet Function Sound System DDAS Digital Dynamic Sound Valley Sound Bar 3D Sound SystemThe TCL V8200 has innovative features such as intelligent voice game air mouse, super smart cloud technology, somatosensory games, full-featured browsers, and application stores. Because it is equipped with the mainstream Windows7/Android operating system, it has a lot of room for expansion. Combining computers with TVs also caters to the needs of some consumers.
Super-intelligent functions and innovative human-computer interaction technology applications are the focus of this evaluation. The author will evaluate features, point-to-point, gray level, color performance, dynamic contrast, high-definition video, USB video, power consumption comparison, and other aspects. The picture effect is for reference only, the following immediately enters the evaluation article. >>
Second, TCL L55V8200 Appearance Appreciation
TCL V8200 adopts the crystal full-enclosed screen design in appearance design, there is a circle of transparent acrylic material border outside the black border of the screen, which makes the appearance full of smart atmosphere, the overall appearance of simple atmosphere.
TCL L55V8200 3D Picture Series Evaluation Forum Quote
V8200 frame does not have too many technical signs, the edge of the acrylic material transparent frame corner is a small rounded design, in daily lighting will be slightly reflective, it is unique and novel. In the bottom right corner of the transparent border, there is an OSD button area. The button symbol appears to float above the border and can be operated by tapping.
TCL V8200 border details
TCL V8200 border details
Just below the screen is TCL's LOGO logo, the logo uses a pearl veneer material, you can see rainbow-colored reflection under different angles.
TCL V8200 logo details
The base of TCL V8200 is made of glass. The small series is very heavy when it is moved. Be careful when installing to avoid accidents. The heavy glass base can provide a solid support for the TV after it is installed. The base has a rotating shaft that can turn the TV through a certain angle.
TCL V8200 base details
The body thickness of the L55V8200 is 41.3 mm. This thickness is relatively thin in the same size product, and it will be more casual in the home environment.
TCL V8200 body side
V8200 back of the fuselage is not common milk white engineering plastic material, and there are several rows of cooling holes distributed up and down, I believe there will be no case of the fuselage overheating.
TCL V8200 back of the fuselage
As can be seen from the label, the origin of the TCL V8200 series is Huizhou, Guangdong, and many Toshiba products of this year were produced in Huizhou, and those models were found by TCL.
TCL V8200 body tag
There is a plastic box on the back of the fuselage that shows the super smart TV. This is the super intelligent processing center of the V8200, which is the hardware part of the super intelligent function. It is a bit like an external Mac mini, but it will not occupy. The data interface, but also with the TV's operating system also achieved a seamless connection.
TCL V8200 Super Smart Processing Center
In terms of interfaces, the V8200 is divided into a side interface and a bottom interface area. The side interface area has three USB ports, a set of 3.5mm audio ports, a digital TV card slot, and three HDMI ports. A cable television signal interface, and the lower interface area is distributed from the left followed by a cable interface, a set of color terminal, microphone interface, TV antenna interface and VGA interface.
TCL V8200 Side Interface Area
TCL V8200 under interface area
V8200 super intelligent processing center remote control and general TV remote control is different, the model is RC500, is the main control center of the super smart TV, the front only distributes the different function keys, but does not have the number key, carries on the channel switching need to turn to the back uses Keyboard numeric keys to operate. The remote controller is powered by two common AAA batteries. The wireless connection is the main method, and the infrared connection is used as an auxiliary device. It is equipped with a gravity sensing device.
TCL V8200 remote control RC500 details
TCL V8200 also comes with a wireless keyboard, keyboard Qwerty full keyboard and function shortcut keys, the back is the touchpad, the upper left corner of the fuselage and the upper right corner of the distribution of two similar handles L, R keys, the function is to replace the mouse The left and right keys, the control method is very novel.
TCL V8200 comes with wireless keyboard details
TCL V8200 body appearance uses a crystal full screen, but the screen frame is not narrow and the current high-end models pursue a narrow border there is a certain gap, but the overall appearance is more refined, although some details are not yet perfect. >>
Third, TCL L55V8200 menu layout
The main menu of the V8200 can be accessed by operating the home button of the V8200 remote control. This interface is the mitv 3.0 UI interface, which is basically the same as the second-generation mitv operating system. However, the Super Smart TV option is added, and the remote control can be used conveniently. Make a selection and the icons slide smoothly.
TCL V8200 main menu interface
TCL V8200 menu interface
The V8200's image setting options are relatively common, with basic effects, backlight, contrast, color temperature, and other options to choose from.
TCL V8200 Image Setting Options
TCL L55V8200 provides four image mode selections, which are bright, standard, soft, and self-setting. The following is a screen shot of the author set the TV in the standard, soft, self-configured three modes, users can refer to the comparison.
TCL V8200 standard image mode
Soft image mode (left) Bright image mode (right)
Fourth, TCL L55V8200 point to point test
During the peer-to-peer test, the PC used by the author was the Lenovo ThinkPad SL400 series, and the signal was input to the TV through the HDMI interface. First set the PC resolution to 1920×1080, refresh rate is 50Hz, and then set the 55V8200 screen display to “full screen†mode in the menu. TCL L55V8200 full HD point-to-point is presented in front of the author. From the point of view of the actual display effect, TCL L55V8200 text strokes clear, full HD point-to-point effect is satisfactory.
TCL V8200 Full HD Point-to-Point Effect
In the Monoscope full HD 1080p signal test, TCL L55V8200 in horizontal lines, vertical lines, oblique lines, circles and other lines on the relatively clear performance, and in the performance of 1080p lines in general, 4 lines have some adhesion phenomenon.
TCL V8200 Full HD Point-to-Point Effect
The following is a close-up view of the pixel point of the LCD panel of the TCL L55V8200. From the shape of the pixel, the white, red, blue, and green colors of the white image are arranged vertically and rectangularly. This type of pixel has common pixel shapes with various panels. The difference is that the specific type of panel is unknown and it needs to be further confirmed.
TCL V8200 LCD panel close up
The menu layout of TCL L55V8200 is concise and clear, the user is very easy to use to carry on the adjustment, provided some parameter adjustment items at the same time, suit the user to carry on the individual adjustment of the picture. The L55X11FE3D full HD peer-to-peer effect is excellent, and the source of the LCD screen is yet to be further confirmed. >>
V. TCL L55V8200 super intelligent function trial
Super Intelligent Internet TV is the most important function of the V8200. It is based on the Windows 7 that TCL tailors a set of operating platforms for the V8200. It can be directly operated with the RC500 remote controller. The operation mode is relatively simple and suitable for people of all ages. use. At the same time the V8200 can also be operated with a wireless keyboard or wireless mouse, which is very simple. The author can enter its operating platform by selecting the super-smart function icon, and pressing the home button will jump back to the mitv system's first-level menu, but at the same time the super-smart function is kept open.
TCL V8200 Super Smart Processing Center
The V8200’s super-smart features are divided into my favorite, TV video, vocal wireless, game fitness, education world, life information, tool assistant, user settings, and mouse and keyboard operations. Users can purchase these from the app store. Big class application. TCL on the network connection also provides two access methods: network cable and Wifi.
Super smart function interface
The "My Favorites" section can be used to collect commonly used applications, or you can directly browse through all the program icons for selection.
Super smart function interface
The “television image†section is mainly a variety of online video programs, including online video content provided by online video providers such as CNTV, Youku, and Youpeng Film and TV. Youku has its own client in the Super Smart TV. Through the client, you can click to watch various Youku resources, and you can search for content through the voice search function.
Youku client interface

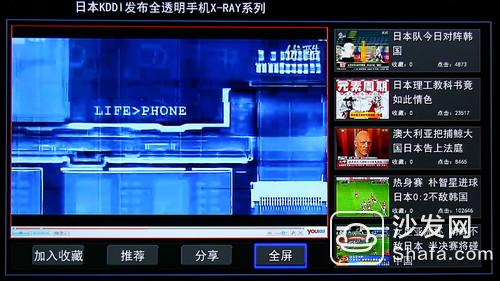

Youku's video quality has always been more general, and after stretching to full HD resolution, quality will not be very good, but Youku has enriched the content of online video to some extent.
Youku client video playback
Youku client video playback
The excellent Peng film and television program provides a lot of online video resources such as movies, TV shows, etc., in which resources are updated faster, and many movie resources are only recently released. By playing the movie "single men and women", it can be seen that the video quality of Youpeng Film and TV is good, and the network reading speed is also faster.
You Peng film interface
You Peng movie online video playback screen
In the "infinite vocal music" section, there are radio, voice song, you point me to sing and other aspects. The radio function can be networked to listen to radio programs around the world, including programs in Hong Kong, Macao and Taiwan, which are highly practical.
The "Voice of Infinity" interface
"Radio" program interface
The voice song can use the microphone that comes with the remote control to collect the sound. The V8200 can recognize it based on a small melody or the name of the song. Many singer's songs are built into the program. You can listen to the songs after you select them, and there will be simultaneous lyrics display during playback.
Voice song interface
Voice Acoustic Interface
The TCL V8200 has built a variety of games in the “Game Fitness†section, including the now popular Angry Birds, Zombies, and more. In addition to these small games that are very hot on the computer, the V8200 also has small games such as eye candy and happy table tennis.
"Game fitness" interface
Angry Birds Game Screen
The V8200's built-in eye-and-eye flash game supports infrared somatosensory operation. The infrared sensor is an external USB device. By connecting with the super-intelligent processing center, it can detect the attached sensory cuff. You can play this game with your hands on the sensor cuff. Now.
TCL V8200 comes with infrared sensor
Eyesight game screen
The game is more like a Wii home console. Selecting a menu by moving the fingertips, picking up and blocking the reflex points is a matter of choice. You need to maintain a certain distance from the sensor while playing the game so that you can expand the area where the arms can be operated. . You can score by grabbing the pink squares, and the game responds smoothly, making it a game that can pass the time.
Eyesight game screen
Plants vs Zombies is a common PC version, but I can use the touchpad of a wireless keyboard or the infrared sensor of a TV remote control to play games. When using a remote control to control, it is almost the same as the Wii control method, so the body itself Built-in infrared sensors, you can control the cursor movement by moving the remote control, press the left mouse button on the remote control to move the plants to play.
Plants vs Zombies game screen
During the game, the author can grasp the plants and layout through the remote control, but the sensitivity of the remote control is not very good, sometimes there will be Dunton feel, but does not affect the general game effect it wants.
Plants vs Zombies game screen
Happy Pong is also able to use the RC500 TV remote control to perform infrared somatosensory games and control the direction of the racket through the TV remote control.
Happy Ping Pong game screen
Through trial games, I feel that the V8200 is built with puzzle games, but these games are also more suitable for home users, using infrared sensors to enhance the game's playability, but in actual trials Sensitiveness and accuracy can be felt to be insufficient, yet it needs to be strengthened. There are many games available for download in the App Store. Many of them can be operated using infrared somatosensory remote controllers. We will not go into details here. >>
V. TCL L55V8200 super intelligent function trial
The “Life Information†section has applications such as Sina News, weather forecasts, and electronic magazines. V8200 browsing Sina News is a half title selection window, half of the information content is displayed, you can select the article to watch by operating the up and down keys, the article font size can be seen even if the distance is far away, but also for the old and the Chinese users A function has certain practicality.
Sina News Interface
The weather forecast also allows users to easily query the specific weather conditions in most cities in the country, including temperature, air humidity, wind power, and ultraviolet light.
TCL V8200 Weather Picture
TCL V8200 Weather Picture
In the "Life Aid" section, Internet Explorer, USB video, audio and other software are built-in. The Internet browser can browse all kinds of pages smoothly, including Flash files, but since it is an application based on the Win7 operating system, it is not possible to have any web page compatibility issues.
Tool Assistant interface
However, it is not user-friendly to use the remote control for zooming on web browsing. After all, the viewing distance of TV products is far away. It is difficult to see if the web page characters are not zoomed, but if you open other networks directly in the Windows system. The browser software can also browse the web through the included wireless keyboard.
Internet browser interface
The "key mouse mode" is a program that must be operated with a mouse or keyboard. The remote controller is difficult to complete. It contains programs such as Web QQ, Google Earth, electronic maps, and TTP.
Keyboard Mode interface options
Web QQ is exactly the same as the usual computer browser. Some built-in gadgets are used. In addition to logging in to QQ, you can also view information such as QQ space and QQ mailbox.
Web QQ software interface
Web QQ software interface
The Google Earth and computer clients are exactly the same, and can perform operations such as searching for names by voice and enlarging maps.
Google Earth program interface
Google Earth program interface
The most important part of the "user settings" section is the application store program. You can use the coupons to download applications in the program store. There are many different sections of the program store available for download, and TCL will continue to increase the number of software.
Application Store Program Interface
Application Store Program Interface
There are two kinds of startup methods for the Super Smart TV function. Users can select “Super Smart Mode†and “Ordinary Computer Modeâ€. The former will directly enter the program menu after opening the Super Intelligence function, while the latter is the normal Win7 operation mode. Double-click the program icon to enter the program, and all Win7 functions can also be used. The former is more suitable for the needs of general users, while the latter is suitable for enthusiast users.
System startup mode settings
In the normal computer mode, the wireless mouse or keyboard can be operated like an ordinary Win7 system. In the following figure, the hardware parameters of the Super Intelligent Center can be seen. The super intelligent center CPU of the V8200 is VIA NANO U3100 1.6GHz, and the memory is 1G. size.
TCL V6200 hardware parameters
By experimenting with the super-intelligent function of the V8200, the author believes that the super-intelligent platform's program is still not perfect, and delays or slow operations may occur during the operation. However, many resources in this platform, such as online video, song on demand, games and information, can enrich the leisure life of TV users. It is very suitable for the use of a family of old and young, and the opening of ordinary computer mode can also let users manipulate It is also very convenient to operate as a computer. >>
Six, TCL L55V8200 gray scale comparison test
Since the screen shot has undergone the necessary software processing and is affected by the actual effect of the netizens' display, the screen displayed on the screen will eventually differ from the actual effect of the TV. Therefore, the actual effect is based on the author's text description. The author uses Hi-Definition Reference Disc to test the disc, using the Sony S470 as Blu-ray player. The camera was shot with a Canon 30D and the lens was a Canon EF-S 17-85mm f/4-5.6.
The first test was a 15-gradient grayscale test. From the actual screen, the V8200 LCD TV performed fairly well. It was easy to distinguish each gray level, and 0, 1, 14 and 15 gray levels were more obvious. . It should be noted that when the natural light technology is turned on, the screen brightness is slightly higher than when the natural light technology is turned off, and the user can select whether to turn on or off according to his own needs.
TCL V8200 15 Gradient Grayscale Test
In the black latitude test, the V8200 performed generally in the dark, but the details in the shadows were not obvious, and the black sinking ability was flat, but the sharpness of the image in the highlights was clear.
TCL V8200 charcoal black level test
Seven, TCL L55V8200 color performance test
First of all, we use Display X to perform full-gamut color over-test on the TCL V8200. From the perspective of the picture, the color is bright and transparent, but the transition between pink and crimson, yellow and green, and light blue and dark blue is compared. Hastily, especially the dividing lines between yellow and green appear clearly.
TCL V8200 full color domain color transition interface
In the performance of the picture of the color coil, the V8200's color appears to be warm, but its ability to express gold is fairly good.
TCL V8200 color test
TCL V8200 color test
From the image of the rotating cloth, we can see that the TCL V8200 screen is relatively transparent and beautiful, but the color reproduction is a bit brighter and less realistic.
TCL V8200 color test
In terms of black and white contrast, black clothes are not easy to distinguish on a black background, and the details of silk are also general.
TCL V8200 color test
After changing the position, the details of the black clothes are still not obvious enough, but the performance of the bright part of the white clothes is clear and distinct.
TCL V8200 color test

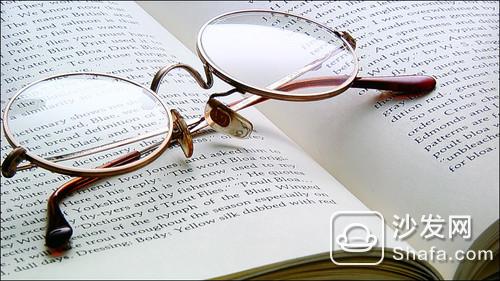

By observing the font on the page, we can see that the V8200 is sharper and the details of the highlights of the colors are clearly visible.
TCL V8200 sharpness test
From this image, it can be seen that the girl's skin is warmer and redder, and there is also insufficient sense of shade.
TCL V8200 color test
After a 15-step grayscale test, it can be seen that the TCL V8200 has a good grayscale performance, but it is not clear enough about the details of the shadows. It performs well in the transition to the full color gamut, and the color display is too bright and somewhat warm. >>
Eight, TCL L55V8200 dynamic screen test
In this part of the test, you need to pay attention to what the netizens are paying attention to is the car behind the windows of the fast-moving train and the body plates of the car. The author used the same ISO and aperture during the shooting process. The parameters are ISO-400 and F4.5. The exposure time is 1/100 seconds. TCL V8200 uses 100/120Hz double speed processing technology, let us see how its performance on the dynamic screen.
Judging from the effect of the trains on the road, there are ghosting phenomena in the houses passing through the train windows, indicating that they are more general in the display of dynamic images.
TCL V8200 dynamic picture test
In the high-definition video of a section of vehicles that is played below, we need to observe the car's license plate and the outline of the car body. The TCL V8200 is smooth for the entire video playback, with slight ghosting on the license plate and vehicle contours.
TCL V8200 dynamic picture test
TCL V8200 dynamic picture test
Nine, TCL L55V8200 power comparison test
TCL V8200 uses a side-mounted LED backlight, rated power consumption of 160w, for many LED-backlit LCD TVs are also relatively power-saving, and from the author's evaluation experience, the actual power consumption is lower than the rated power consumption. The author uses the instantaneous power consumption test method, which is to measure the power consumption values ​​of the six screens of red, green, blue, white, black and color transitions in the standard mode.
TCL L55V8200 power comparison test
From the actual test results, TCL V8200 in the standard image mode, the black screen power consumption is the lowest, 49.58w, while in green and blue is about 104w, while the power consumption of other brighter screen is maintained at about 150w The power consumption performance is still good.
Although TCL V8200 has 120Hz speed capability, but in actual use, its performance on high-speed dynamic picture is slightly insufficient, there is a slight smear phenomenon. In terms of power consumption, the V8200 also maintains a maximum of about 150W, which is relatively power-efficient. >>
Ten, TCL L55V8200 HD video screen test
In the high-definition video screen evaluation, I chose the "Dolby - the sound of high definition" and "homeland" these two Blu-ray discs, through the Sony S470 playback and transmission through the HDMI cable. Among them, "Dolby - the sound of high definition" is a documentary fragment of the African grassland. It can be seen from the screen image that the V8200 can play the screen smoothly, but the color of the screen is still too bright and slightly warm. However, the overall effect is good.
TCL L55V8200 HD video screen test
TCL L55V8200 HD video screen test
In the "Homeland" Blu-ray disc, mainly aerial photographs of different countries' landscapes, the author felt that there was always some noise in the brightness of the screen through viewing, and the image had a certain sharpening.
TCL L55V8200 HD video screen test
TCL L55V8200 HD video screen test
By playing these two videos, you can see that the TCL V8200 has a good playback effect, the picture is clear and smooth, but the noise is easy to appear in the bright part, and the color reproduction is slightly warmer. >>
Eleven, TCL L55V8200 streaming media playback test
The TCL V8200 is relatively isolated from its original mitv system due to its super-intelligent function, so it can be played on the streaming media either with the super-smart function or with the embedded system of its own TV, but inserting the USB When the device needs to distinguish between the interface on the fuselage and the super smart box, the following is a general streaming media test based on the Mitv 3.0 system.
TCL L55V8200 streaming media play menu
In video playback, the author tested several commonly used HD, SD resolution video file formats, such as RMVB, AVI and MKV, etc., V8200 can play the vast majority of video files, streaming video playback function is quite practical.
TCL L55V8200 streaming media video player interface
You can also perform some quick operations on the video during playback, which is very convenient.
TCL L55V8200 streaming media video player interface
TCL L55V8200 streaming media video player interface
The V8200 supports most of the file formats on the image. In operation, you can also bring up the shortcut menu for easy operation.
TCL L55V8200 streaming media picture playback interface
TCL L55V8200 streaming media picture playback interface
After testing, I believe that the V8200's streaming media playback capability is relatively strong, the compatibility of video, pictures, and music is good, but when the file is large, there will be slower operation, but the overall performance is good. >>
Twelve, TCL L55V8200 evaluation room summary
TCL V8200 as the brand's main model this year, provides a very rich program and content in the super smart features, including Windows/Android operating system, TV application store, voice and cloud computing capabilities, smart gestures and gesture recognition and control to further expand The function of the TV. Among them, the wireless somatosensory remote controller can perform various operations, bringing an innovative user experience to the user, and continuously updating the entertainment content also enriches the daily life of the home user.
TCL L55V8200 3D Picture Series Evaluation Forum Quote
Through the detailed evaluation of the above multiple projects, PConline evaluation room summarizes the evaluation performance of TCL V8200 as follows:
Edit Comment: TCL L55V8200 has a crystal full-screen appearance of the exquisite, and its own wireless somatosensory remote control, voice recognition and other operating methods have a certain degree of practicality, based on the Windows7 system's super-smart features built a wealth of applications, By connecting to the Internet, resources and applications can be continuously updated and used by different family members. However, because it is a new technology attempt, the super-smart function has not been perfected in some aspects, and it is quite satisfactory in terms of image quality. [Back to Channel Home]
