The simplest triode audio amplifier circuit adjusts the size of R1 so that the signal is not distorted at maximum output, and R can output more power.
If you have a multimeter, you can adjust the C pole voltage to about 1/2 of the power supply voltage.

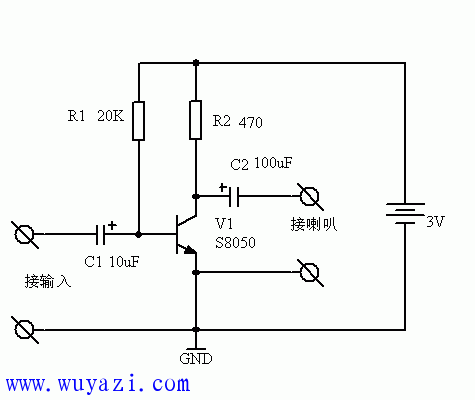

Figure 1. Fixed bias, power supply voltage has a great influence on the bias current. Basic common emitter circuit

In Figure 2, the bias is connected to the negative feedback, the amplification becomes smaller, and the power supply voltage has less influence on the bias current.
Voltage negative feedback connection, adapt to a wider voltage range.
This class of class A amplification has the lowest efficiency and is characterized by simplicity. It is rarely used in low-voltage circuits because the output power is too small, and it is actually used in power-driven circuits while amplifying voltage and current.
