Many IT products have become wireless in recent years. Especially after smart phones become a must-have tool, various products controlled by mobile phone APP have emerged. I believe most of my friends’ mobile phones are equipped with video software. If they can easily put TV dramas and movie resources on TVs or monitors, they must be very popular. Users who used TV boxes in the past may not be able to adapt to the corresponding systems and remote controls. With TV boxes being subject to various restrictions, practicality is greatly reduced.
The iQiyi TV Fruit 3 recommended for everyone today breaks down all kinds of cumbersome operation and resource limitations, and brings a smooth and big-screen movie viewing experience. TV Fruit 3 is the third generation product of TV series products. It is positioned as a bridge between mobile devices and TVs. The core functions enable one-click screencasting. Content on mobile phones is freely displayed on the large screen of TVs. It solves the problem that the mobile phone sees the video screen is too small and the content of the TV and Internet connection port is far from sufficient, and the practicality is unprecedentedly powerful, bringing you into a new era of projection screen.
Packaging and appearance overview
The iQiyi TV Fruit 3's packaging is simple and beautiful, and the front is the product effect picture of TV Fruit.
On the other side, there is an application icon, and annotated “Lightly tap the screen, mobile phone video APP, photos, music, and games are on the TV for one second.†I believe that even those friends who did not know TV in the past could understand this product for a second time. effect.

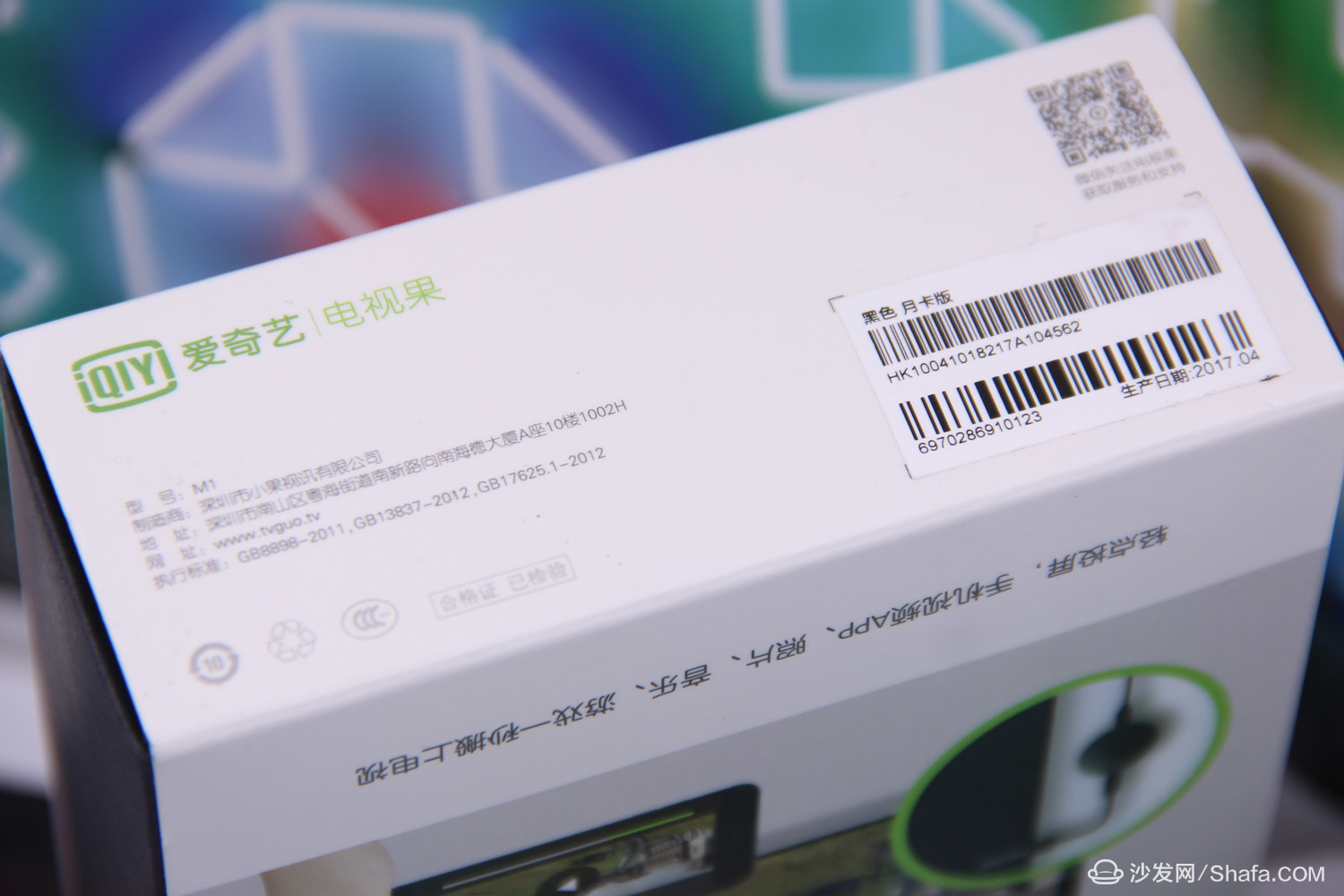

From the package side you can see this TV model is M1, because it is the third generation of television products, it is referred to as TV fruit. At the same time, it also marked this product is a black card version, indicating that IQIYI VIP membership is included for 1 month.
Remove all the contents of the package, in addition to the TV and use instructions, equipped with a Micro-USB data cable and a mini-HDMI to HDMI video transmission line.
iQiyi TV Fruit 3 is a third-generation product that uses a pie shape to create a more beautiful appearance and a smaller body. The front and back have a matte feel and are not reflective. The front is the iQiyi logo.
On the back there are 3C certification marks and product name models, among which there is a white dot, which is the power indicator light, which will light when power is on.
The side of the TV Fruit 3 is surrounded by a bright surface, which is different from the front, so that the entire product is not monotonous and dull, regardless of the location will bring a decorative effect of the look and feel.

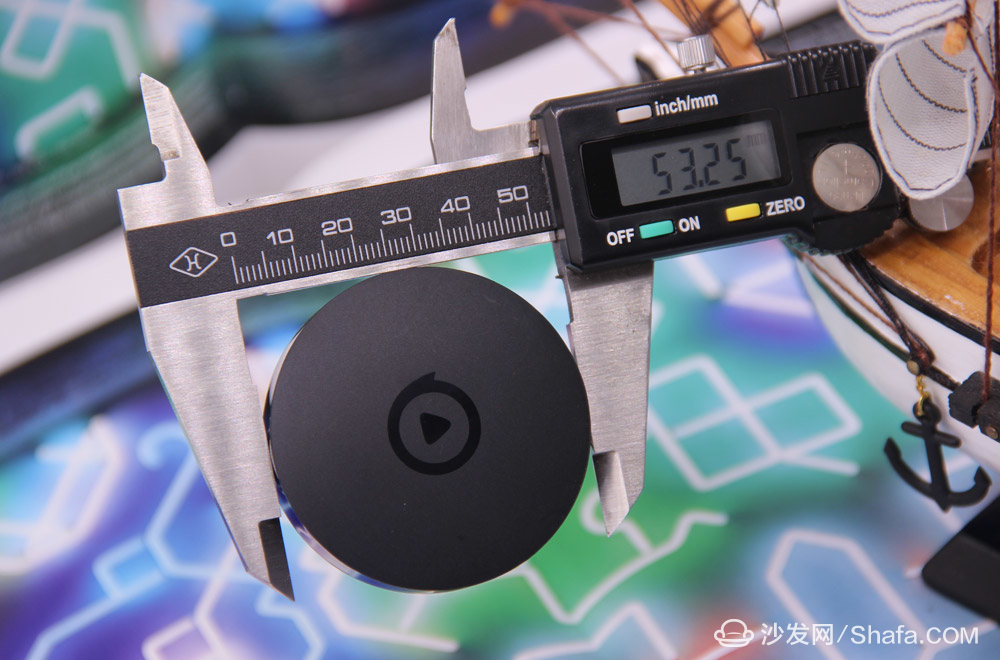

The product measures a diameter of 53.25mm, and the thickest part in the middle is only about 14mm, slightly thicker than a smartphone. Of course, both the interface and the reset button are on the side.
TV Fruit 3 is equipped with a Micro-USB power supply interface and a reset button on one side. Among them, the power input is DC 5V-1A, and the TV's own USB interface can meet the power supply needs, and it is not necessary to connect the charger again.
The other side is the output mini-HDMI interface. In addition to its reasonable design, TV 3 also received praise for its versatility and wide application range. Any device that has an HDMI interface can connect to the TV, including but not limited to projectors, monitors, etc.
3 Trial experience Trial experience Once you have a look at the look, interface, and application range of Ichievo TV 3, you're ready to go into the trial experience. The use of large-screen TVs and Android mobile phones, the use of TV fruit 3 for introduction and display of results. First understand the TV hardware parameters, support AirPlay and DLNA two screen mode, using quad-core ARM Cortex A7 CPU processor and quad-core MALI-450 GPU display core. Both 2.4G and 5G WiFi connections are supported, and the video output supports the HDMI 1.4B interface. At the same time, the TV card March edition comes with a month of iQiyi VIP members, after the first connection, according to the prompt scan code and log in to the iqiyi account will be able to receive.
After connecting iQiyi TV 3 to the TV, turn on the TV and switch to the corresponding HDMI port, you can see the initial scan code download APP interface. It should be noted that the only key on the 3 side of the TV is the reset button, not the switch. After the USB power cable is connected, the TV 3 will automatically open. The first step of the initial interface is to download the TV APP. The second step is to open the mobile phone APP to connect WiFi to the TV. It is easy to complete the device connection in two steps.
The main interface after the success of the TV connection to WiFi, similar to the style of the box, but the ultimate simplicity, but this is not important, but now popular episodes and movies recommended.
Immediately experience the TV channel broadcast function, in the TV fruit APP, provide a lot of TV channels, select the popular high-definition CCTV5 sports channel, you can see the picture quality is very smooth and clear. Trying to switch between various popular channels is pretty fast.
However, the picture quality of some non-HD channels is not ideal. Here we look at SDTV Shenzhen TV, the picture is more vague, the overall picture is smooth, suitable for slower users at home to watch.
In addition to the smooth playback and switching of various popular program channels, there are also some exclusive special program channels, similar to the pay-per-view channels in digital television. Although they can be opened, they are limited in resources and are too slow to load.
Commonly used TV features are of interest to users, and online video is also attracting attention. iQiyi TV Fruit 3 supports iQiyi, Tencent, Youku, Tudou and other video sites covering almost the entire network. At the same time, TV supports Baidu SkyDrive and other types of video projection, not limited by the contents of the APP, which virtually integrates the resources of all Internet video sites.
Various TV channels and network resources have demonstrated the immense practicality of iQiyi TV Fruit 3, and the main screen-casting function of this product. Here, the author divides the screen-casting function into two types, one is direct-screening, the other is indirect-screening.

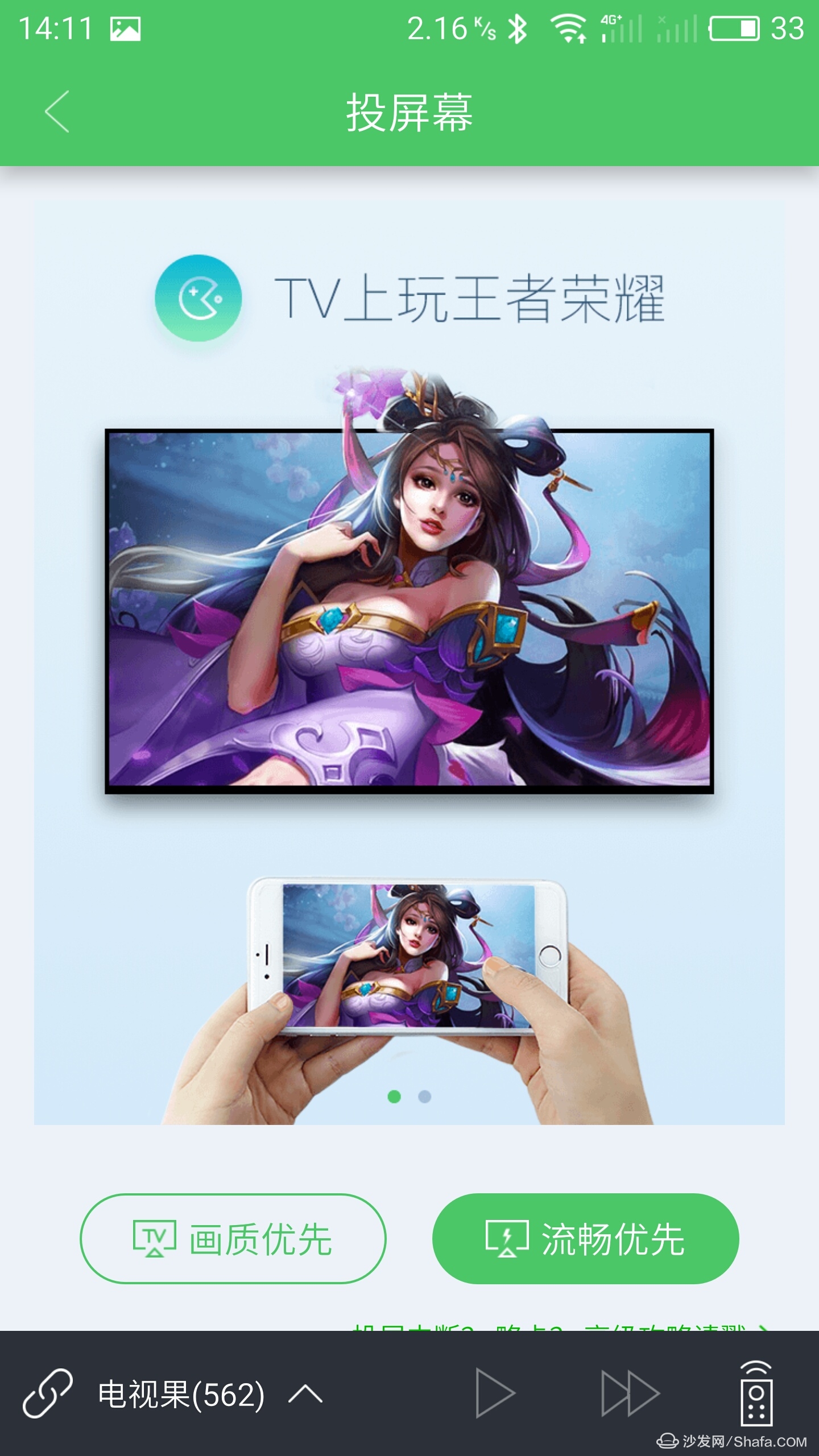

By clicking on the screen in the main interface of the mobile phone APP, the screen of the mobile phone can be directly shot on the TV, and it is also the simplest direct screen-casting method. At this moment, the TV picture changes with the mobile phone in real time, and the user can directly enlarge the document, PPT, web page, etc. on the TV screen, which is suitable for office use. Of course, after the mobile phone has turned on the game function, it can also move the game screen to the TV screen to share the game experience, but it is not suitable to watch the TV screen to play the game, because the wireless transmission of the game screen is slightly delayed, and occasionally there will be dropped frames Case.
Indirect screencasting generally needs to be completed through other APPs. The advantage is that the screencasting can be completed in the background, that is, the user can still use the mobile phone to chat, browse the webpage, etc. during the screencasting, without interfering with the normal use of the mobile phone by the user.
The method of operation is also very simple. Before preparing for screencasting, TV Fruit App will give tutorials. Selecting a TV show or movie using your phone will jump to the APP of that video resource. For example, this time the author chose to play the TV series "Spring is not as good as you". The video is Youku Resources. You will jump to Youku App in your mobile phone. Then click on the "TV" screen at the top, and the TV will start playing the screen. Then switch to the remote state, you can drag the progress bar and adjust the volume level, of course, you can also click the HOME button to make it run in the background, users can continue to use the phone to complete other work.
Putting music on the screen is similar to using TV stereo.
It is also possible to directly screen the video resources stored on the mobile phone. For example, the author uses the movie “Memory Master†in the mobile phone and directly casts the screen on the TV. The mobile phone will automatically switch to the remote control interface. Because it is a local resource, dragging the progress bar at will is smooth. There are more features and settings are simple and clear, they will not be introduced one by one.
Feeling of evaluation and summing up recalling the earliest TVs, you just need to access the antenna to watch TV; later appeared cable TV, digital TV and IPTV, etc., need external TV set-top boxes and other equipment, it is difficult to arbitrarily change to other devices, For example, switching to a monitor or projector, etc., is not very convenient. In recent years, popular TV boxes are easy to dock with different display devices, but they need to be equipped with remote controllers. The system operation may be tedious, and it is also subject to many restrictions. The average user does not consider using them.
When iQiyi TV was able to accomplish powerful screen-casting functions with smart phones in an extremely minimalistic manner, it instantly became popular with popular users. In particular, the simple connection method seems to have returned to the beautiful era when the first antenna was inserted to watch TV. In addition to being used in LCD TVs and projectors, many users will choose to install on LCD monitors with HDMI interfaces and built-in speakers, allowing the computer display in the bedroom or study room to turn into TVs in one second.
Not limited to video entertainment, the screen-casting function is often used at work, such as documents and PPT presentations, etc. With the light and portable Iqiyi TV Fruit 3, no matter which work area you go to, you can be competent for shooting. .
This experience in the practical use of iQiyi TV Fruit 3 found that this screen-casting device has a lot of advantages. The single switch channel has almost no delay performance, and it can satisfy most users. It can be said that The experience of using TV features is very good. In addition, the screencasting function is also rich and perfect. In most cases, it does not occupy mobile phone performance resources. Even when the mobile phone video and music are played, the user can continue to use the mobile phone to complete other tasks even after the background is switched. Only in the use of the game screen, the user can feel a certain delay, so the game screen is only suitable for sharing viewing, not suitable for directly watching the screen after the screen shot, this is a variety of wireless screen shot has not been completely solved problem. In general, the positioning of iQiyi TV Fruit 3 products is very good. The various performances in the evaluation can satisfy users and are worth recommending.
