New adjustable voltage regulators with multi-turn fine adjustment

I am excited to announce our first voltage regulators with multi-turn trimmer potentiometers! I have wanted to add multi-turn pots to our products for a long time, but the problem has been that they are really expensive. They also tend to be quite big, at least compared to many of our boards, which we try to keep compact, and the smaller, surface-mounted ones are especially expensive. My latest round of looking for lower-cost options did not pan out, but I decided to just give it a try with the expensive parts.

The new S9V11x regulators that feature these potentiometers are buck-boost regulators that can output a voltage that is lower, the same, or higher than the input voltage. There are also versions with a multi-turn pot for adjusting the undervoltage cutoff threshold, so that if you use these with batteries, you can prevent overdischarging them. With twelve turns of adjustment available, it’s much easier to precisely set the voltages on the modules than with the single-turn potentiometers we have used on other adjustable regulators.

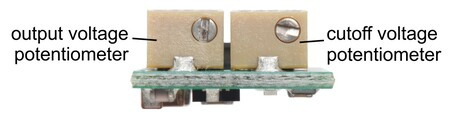

The output and cutoff multi-turn adjustment potentiometers on the S9V11x voltage regulators.

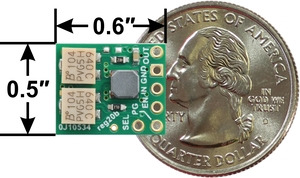

While I have been talking mostly about the potentiometers, the main regulator is pretty magical, too, giving you quite a bit of power over a broad operating input range in a small size.

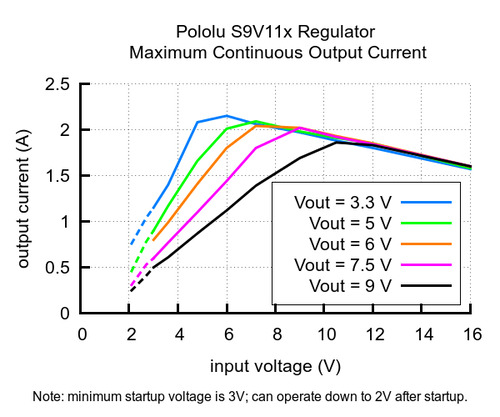

Typical maximum continuous output current of Step-Up/Step-Down Voltage Regulator S9V11x

Our stock products are available in several combinations of adjustable and fixed output voltage and cutoff. If you have a higher-volume application, we can make them with fixed voltages wherever you need them. You could initially prototype your design with the adjustable version and then get fixed ones made once you know exactly what voltage you need.

Regulator		Input (V)	Output (V)	Low-voltage cutoff	Size	Price
	#2868 S9V11MACMA	2* – 16	2.5 – 9 (fine-adjust)	fine-adjust	0.50″ × 0.60″ × 0.25″	$13.95
	#2869 S9V11MA		2.5 – 9 (fine-adjust)	–		$10.95
	#2870 S9V11F5S6CMA		5 (6 V selectable)	fine-adjust		$10.95
	#2871 S9V11F3S5CMA		3.3 (5 V selectable)	fine-adjust		$10.95
	#2872 S9V11F3S5		3.3 (5 V selectable)	–	0.50″ × 0.60″ × 0.17″	$7.95
	#2873 S9V11F3S5C3		3.3 (5 V selectable)	3 V (fixed)		$7.95
	#2836 S9V11F5		5	–	0.30″ × 0.45″ × 0.17″	$8.95
* The regulator has a minimum start-up voltage of 3 V, but it can operate down to 2 V after startup. It is disabled when the input voltage is below the low-voltage cutoff.

I am very interested to see what people think of the multi-turn adjustment feature. If these new regulators sell decently or customers ask for it, we will add the multi-turn potentiometers to our other regulator offerings. Is the extra expense worth it? Or do you know of a good, low-cost, multi-turn potentiometer we could consider for future products like this?
